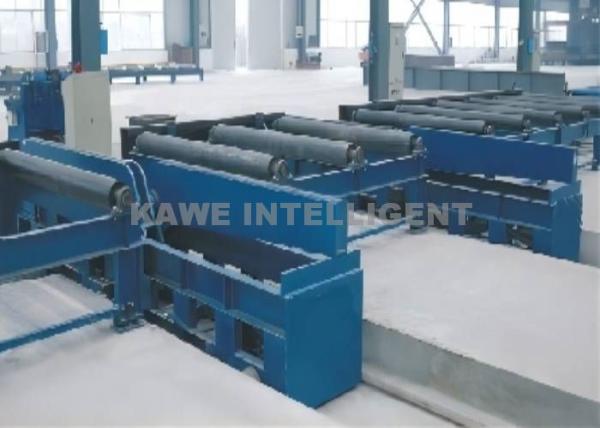

Bidirectional Material Turning Moving Auxiliary Machine 10T

Brand Name : KAWE

Model Number : YFJS-10T

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD 10,000-20,000

Supply Ability : 1set/30days

Delivery Time : 30days

Packaging Details : export standard package

usage : H beam automatic welding

efficiency : high efficient

Function : turning and moving material

Load capacity : 10T

Contact Now

Steel moving machine

The machine is composed of main machine and control system.It includes flipping mechanism,main work table, raise and fall mechanism, micro-hydraulic station, moving system,electric control box assembly,control box, cable wire and project towline.

Staggered arrangement of production line roller table and conveying roller table, using steel moving machine and 90° turnover machine, reduce hoist process, ensure smooth conveying.

Main technical parameters

　　　　　　Model

Parameters

 YFJS-10T
The max. loading capacity 10T/group
Turning speed 1m/min
Moving speed 6m/min
system pressure 16MP
Machine power 18KW
